Hello,

So you ever noticed those nice wiring jobs where everything lines up and it looks so clean that you almost believe that it was done without human intervention… well the arcade was not done that way when I originally built it. Because of that, when I decided to add the missing nixie circuit, I decided to also clean up the rat’s nest of wires that was my arcade.

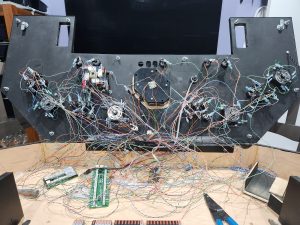

I know I am going to get hell for this but here is what it looked like before.

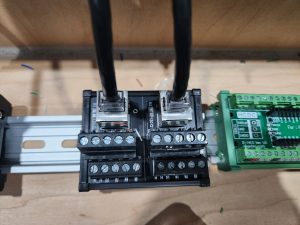

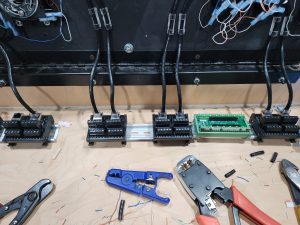

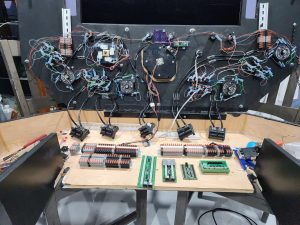

Yeah, I know. On a good note though, it has been cleaned up a bit and I managed to get some nice new parts to help with wire/cable management. Check it out so far…

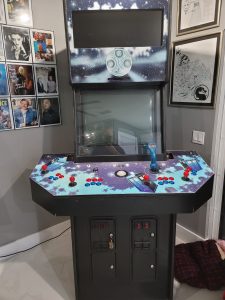

I also realized that I never posted what the arcade looks like. Here you go. I will also be linking a few things that I used to help with my cable management so if you want to use any to help, feel free.

Items purchased for arcade:

Cat 5 Cable Clips
Din Rail Terminal Blocks
Din Rail Mount for Pico Board
Din Rail Mount Breakout for Ethernet
Aluminum Din Rails 8″

---

Filed under: Arcade,Electrical,Hardware,Uncategorized - @ April 25, 2023 3:11 pm
