From the previous post, a few things happened since then. First, the board design had to be changed. I realized that this old board design would not fit into the arcade layout and I had to modify the position of things slightly. I had to space out the Nixie tubes 2mm and that cleared a few pathways up so good a trade-off. I included a side-by-side comparison for your pleasure.
We will see how things go when I install it.

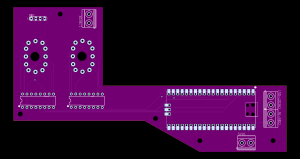

New Board

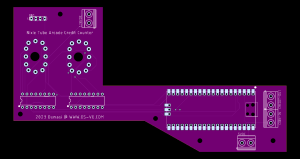

Old Board

---
